Clin Res Cardiol (2021). 10.1007/s00392-021-01933-9 |
||
Comparison of p-wave detection of the BioMonitor III, Confirm Rx and Reveal Linq implantable loop recorders. | ||
A. Cretnik1, T. Schreiber1, P. Schauerte2, F. Blaschke3, P. Lacour3, V. Tscholl1, P. Nagel1, U. Landmesser1, M. Huemer1, P. Attanasio1 | ||
1Campus Benjamin Franklin, Department of Cardiology, Charite Universitaetsmedizin Berlin, Berlin; 2Praxis für Kardiologie-Rhythmologie, Herzmedizin-Berlin, Berlin; 3Campus Virchow Klinikum, Department of Cardiology, Charite Universitaetsmedizin Berlin, Berlin; | ||

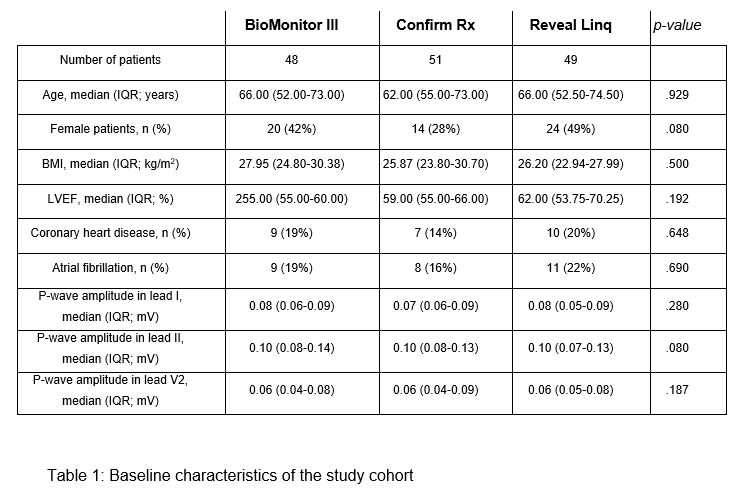

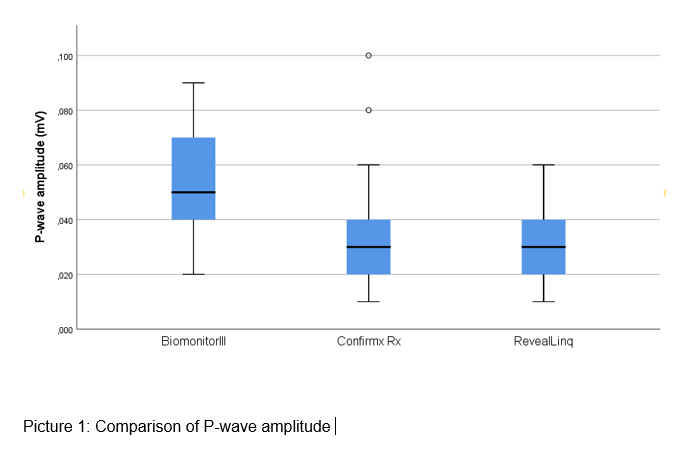

Introduction Implantable loop recorders (ILR) are used for long-term cardiac rhythm monitoring. Rhythm assessment is usually made by interpreting R-R intervals. Rhythm confirmation is facilitated in cases when p-wave detection on EGMs is possible. The three most commonly used implantable loop recorders (BioMonitor III, Biotronik, Berlin, Germany; Confirm RX, St Jude Medical, Sylmar, USA and Reveal Linq Medtronic, MN, USA) differ in size, electrode placement and filter algorithms. Therefore, P-Wave visibility and amplitude on EGM may vary according to the implanted device. This study is the first to compare p-wave detection capability of the BioMonitor III, Confirm Rx and Reveal Linq implantable loop recorders. Methods ILRs were implanted according to the manufacturers recommendations. P-wave visibility and amplitude were evaluated on 30-second EGMs with standard resolution (25 mm/mV for Biotronik and St. Jude, 30 mm/mV for Medtronic). Analysis was repeated with maximum magnification. Additionally, baseline characteristics and 12 lead-ECG properties (P-Wave amplitude in leads lead I, II and V2) were documented. Results 148 consecutive patients (37% female, average age 62.31 + 13.73) with implanted BioMonitor III (n=48), Confirm Rx (n=51) and Reveal Linq (n=49) ILRs were included. Baseline characteristics and p-wave properties in 12-lead EGG were not different between the three groups (see table 1). Average p-wave amplitude was 0.05 mV (IQR 0.04-0.07) for the BioMonitor III (0.03 mV (IQR 0.02-0.04) for Confirm Rx and 0.03 mV (0.02-0.047) for Reveal Linq, see picture 1; p<0.001). Without magnification, P-waves were visible in 39 of 48 patients (81%) with BioMonitor III, 36 of 51 patients (71%) with Confirm Rx and 35 of 49 patients (71%) with Reveal Linq. With maximum magnification, P-waves could not be seen in one patient with BioMonitor III (2%), six patients with Confirm Rx (12%) and one patient with Reveal Linq ILR (2%). Conclusion Due to a longer sensing vector, detected p-wave amplitudes were higher in patients with implanted Biomonitor III. In this study cohort this did not lead to a higher likelyhood of p-wave visibility. |
||
https://dgk.org/kongress_programme/ht2021/P318.htm |
